Sizing machine
1. Cantilever Length Fixer

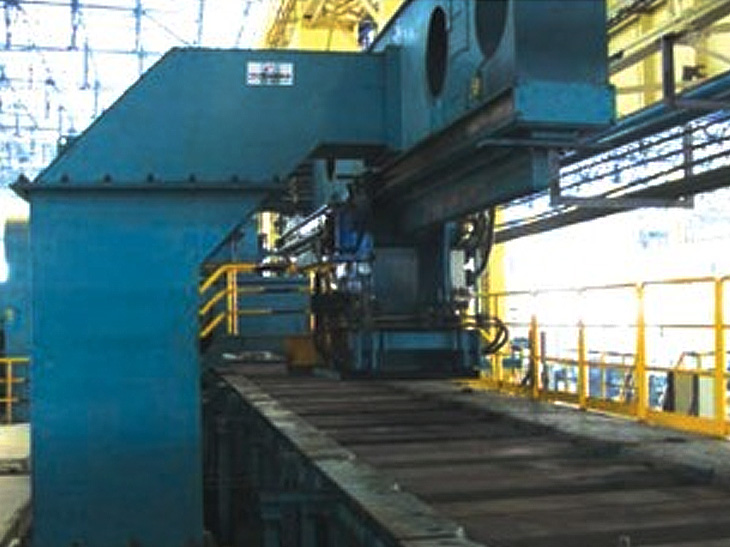

2. Gate-type sizing machine
It is installed on the side of cold-cut steel to determine the length of fixed-length rolled piece. The sizing machine is composed of a sizing trolley, beams, brackets, pneumatic and hydraulic systems, etc.
The fixed-length trolley is equipped with a baffle which is lifted and lowered by the cylinder and a motor driving device which moves on the cross beam.
Locking Mode: Hydraulic Locking
The cross beam is provided with a locking structure matching the longitudinal positioning of the fixed length trolley and a scale plate for indicating the fixed length.
Technical parameters:
Length range: 6m-12m
Final Length Accuracy: <10mm
Baffle Width: Effective Width 1200-1400mm
Status of blocked rolled pieces
Length of rolled piece: 36-114 M
Maximum weight: about 14 000 kg
Maximum operating speed: 1.5m/s
Compressed Air User Point Pressure: 0.6 Mpa Hydraulic: 10 Mpa
